Flex Lag Pulley Lagging

✦ Flex-Lag Weld-On

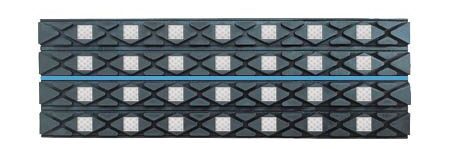

✦ Flex-Lag Weld-On Pulley Lagging features a patented gear tooth design. This eliminates the wide gutters present in conventional weld-on lagging products and also helps minimize problems associated with vibration, cleaner chatter and overall belt cleaner compatibility.
✦ Available in rubber and ceramic, Flex-Lag
Weld-On Pulley Lagging is pre-cut to standard CEMA pulley widths for fast, easy installation.

Features and Benefits

Easy to use

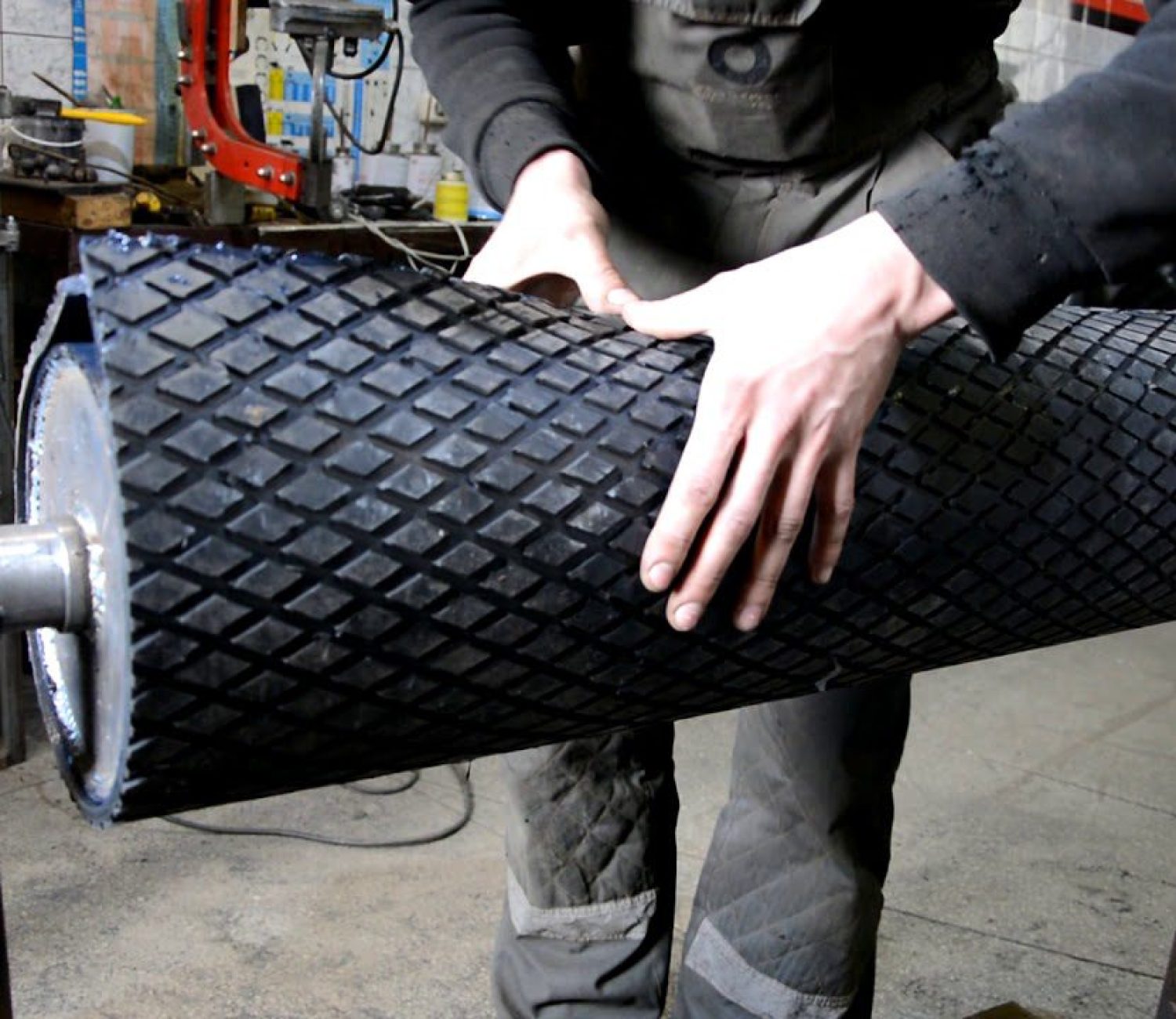

Can be easily installed without removing the pulley. Lagging strips are designed to CEMA pulley width standards to eliminate waste and reduce installation time by up to 50% over similar weld-on lagging products.

Works on a range of pulleys

Flex-Lag Weld-On comes in strip widths from 500mm to 1800mm to match up with pulley face widths. Also works with pulley diameters ranging from 400 to 1800mm.

Available with FRAS approved rubber

The Flex-Lag Weld-On Rubber is available in both natural and FRAS(Fire Resistant Anti Static) rubber, marked in blue for easy identification on site.

Minimize Problems Associated with Vibration

Performs well for dry, wet, or muddy applications

Available in SBR rubber and FRAS-approved rubber

Available in rubber and ceramic

74% ceramic tile coverage for the Flex-Lag® Weld-On™ Ceramic laggging

PRODUCT SPECIFICATIONS

Temperature Rating: -15° C to 85° C

Belt Width: 450 – 1800 mm

Pulley Diameter: 400 – 1800 mm
